New Product

Bar Hanger Set

New Product Bulletin โ€“ Bar Hangers* set a new standard

We are pleased to offer our new and innovative bar hangers. Incorporating the best features found amongst existing bar hangers, and adding several new innovations, these will rapidly set a new standard in bar hangers.

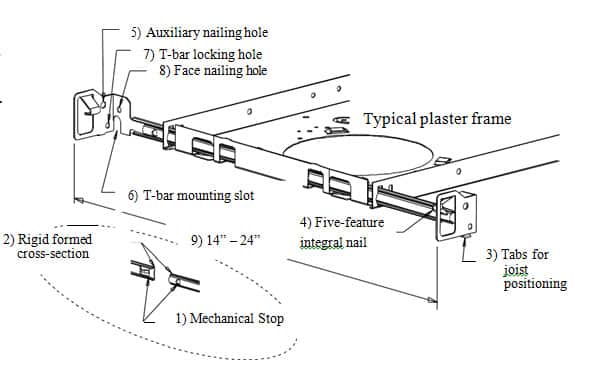

Features include:

1) Mechanical interference to prevent them from slipping apart, yet if necessary, this can be overcome with a solid
2) Formed cross sections offer superior
3) Contains small outward extending tabs for positioning flush with underside of joists
4) Contains integral nails, which are:
– located as far away as possible from the main bar to permit easy nailing.
– oriented parallel to joist wood grain for easier installation.
– toothed to resist pullout.
– the sharpest available achieved through a proprietary process.
– retracted and surrounded for added safety prior to installation
5) Contains auxiliary nailing hole for added retention, also located far from the main bar to permit easy nailing.
6) Contains slots for engagement with suspended ceiling T-bar, whose depth lets the plaster frame sit flush with the underside of ceiling panels.
7) Contains hole for locking hangers to T-bar using #8 self-tapping screw
8) Contains second auxiliary face nailing hole for transverse or other unusual mounting orientations.
9) Extendable from 14โ€ to 24โ€ centers.

Made in dedicated tooling for the most competitive pricing.

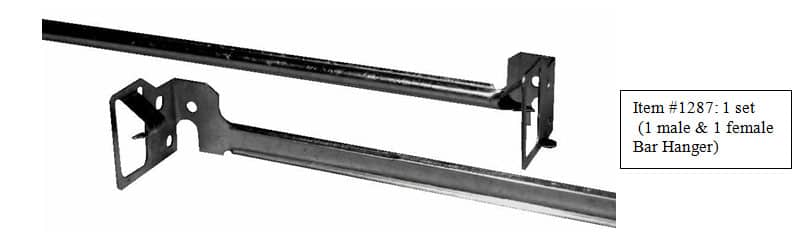

Triparโ€™s Engineering Team conducted load testing on our 1287 Bar Hanger vs. our 1487 Commercial L-Bar Hanger.ย  Click here to see the results of this test.

Contact our sales department at 1-800-361-0983 or [email protected]
