Bracket 1253-1, ‘L’, to work with #1054 & #1254 on Plaster Rings, Galv and Alu (#1253-1AL)
Tripar Catalog
Search for a product
Show only in stock items
Filter by product type
SKU: Assembly 1241 Series
Small platform 7-7/16″x 10-3/32″. With variations for vertical adjustment and 4″tall I.C.Box.
SKU: Assembly 1401 Series
Standard Plaster Ring Assembly, Non I.C. in 6″ and 8″ versions
SKU: Assembly 1405 Series
Driver Grid Plate Assembly, Non I.C, 12-1/8″ x variable width. With variations for Vertical Adjustment.
SKU: Assembly 1231 Series
Standard platform 8-5/8″x 12-1/2″. With variations for Volume Expansion, Vertical Adjustment, large J-Box and Knockdown I.C.Box.
SKU: Assembly 1531 Series
Standard platform 8-5/8″x 12-1/2″ with integral junction box. Variations for Volume Expansion and Vertical Adjustment
SKU: 1242-18B
3-D Cover, for 1232 & 1247 series Junction Boxes. Increases volume of mentioned boxes by approx. 50%, and, allows below ceiling access.
Galv & Aluminum (#1242AL-18B)
SKU: 1242-25B
3-D Cover, for 1232 & 1247 series Junction Boxes. Increases volume of mentioned boxes by approx. 50%, and, allows below ceiling access.
Galv & Aluminum (#1242AL-25B)
SKU: 1242-37B
3-D Cover, for 1232 & 1247 series Junction Boxes. Increases volume of mentioned boxes by approx. 50%, and, allows below ceiling access.
Galv & Aluminum (#1242AL-37B)

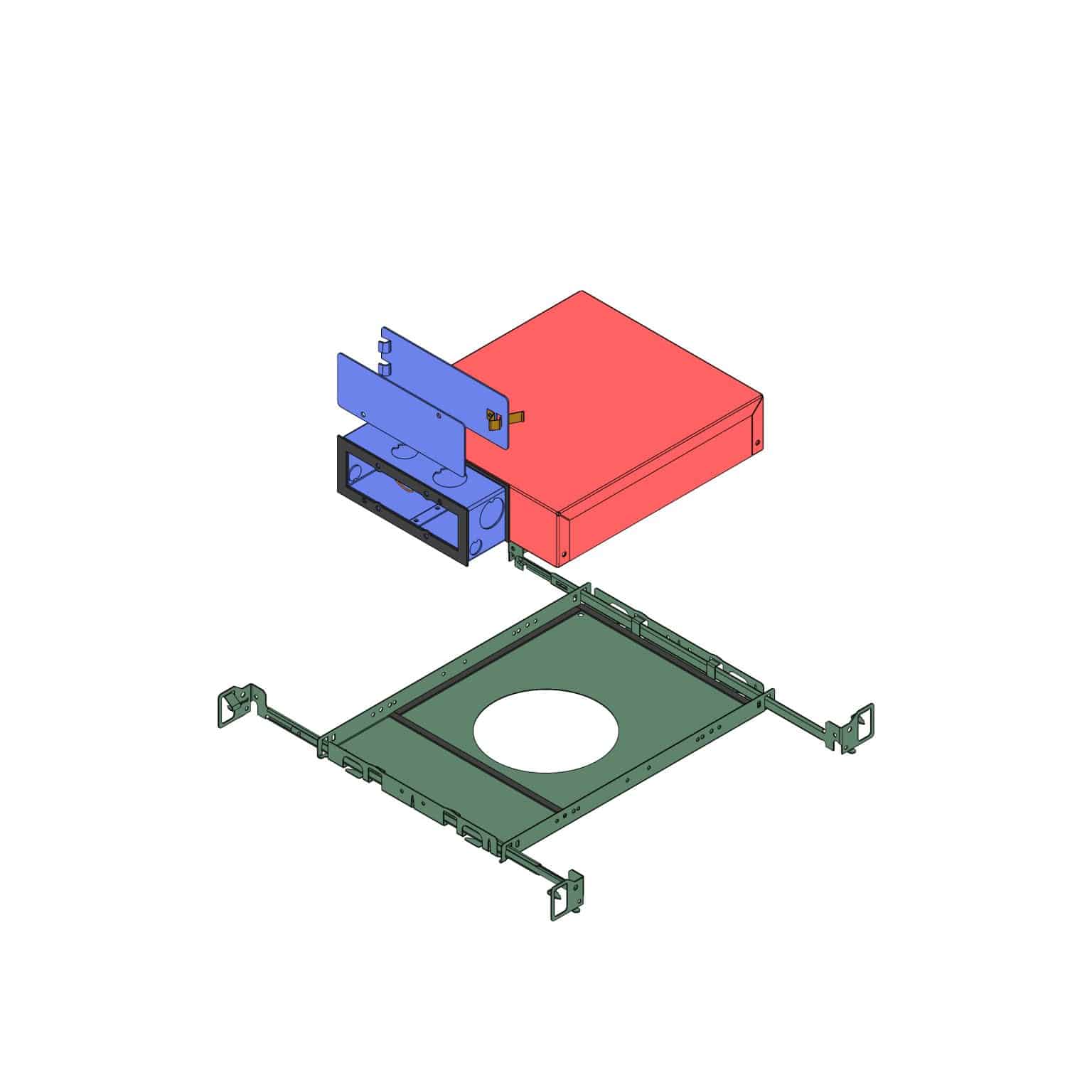

SKU: Assembly 1775 Series
Mini Assembly, available in Chicago Plenum & Ultra Airtight, I.C. 2-1/4″ High, with variations for Vertical Adjustment.
SKU: Assembly 1586 Series
Standard Assembly, available in Chicago Plenum & Ultra Airtight I.C.; Ultra Shallow 3-1/2″ High, with variations for Vertical Adjustment.
SKU: Assembly 1286 Series
Standard Assembly, available in Chicago Plenum & Ultra Airtight, I.C. 6-3/4″ High. With variations for Vertical Adjustment, Shallow I.C.Box and Large J-Box

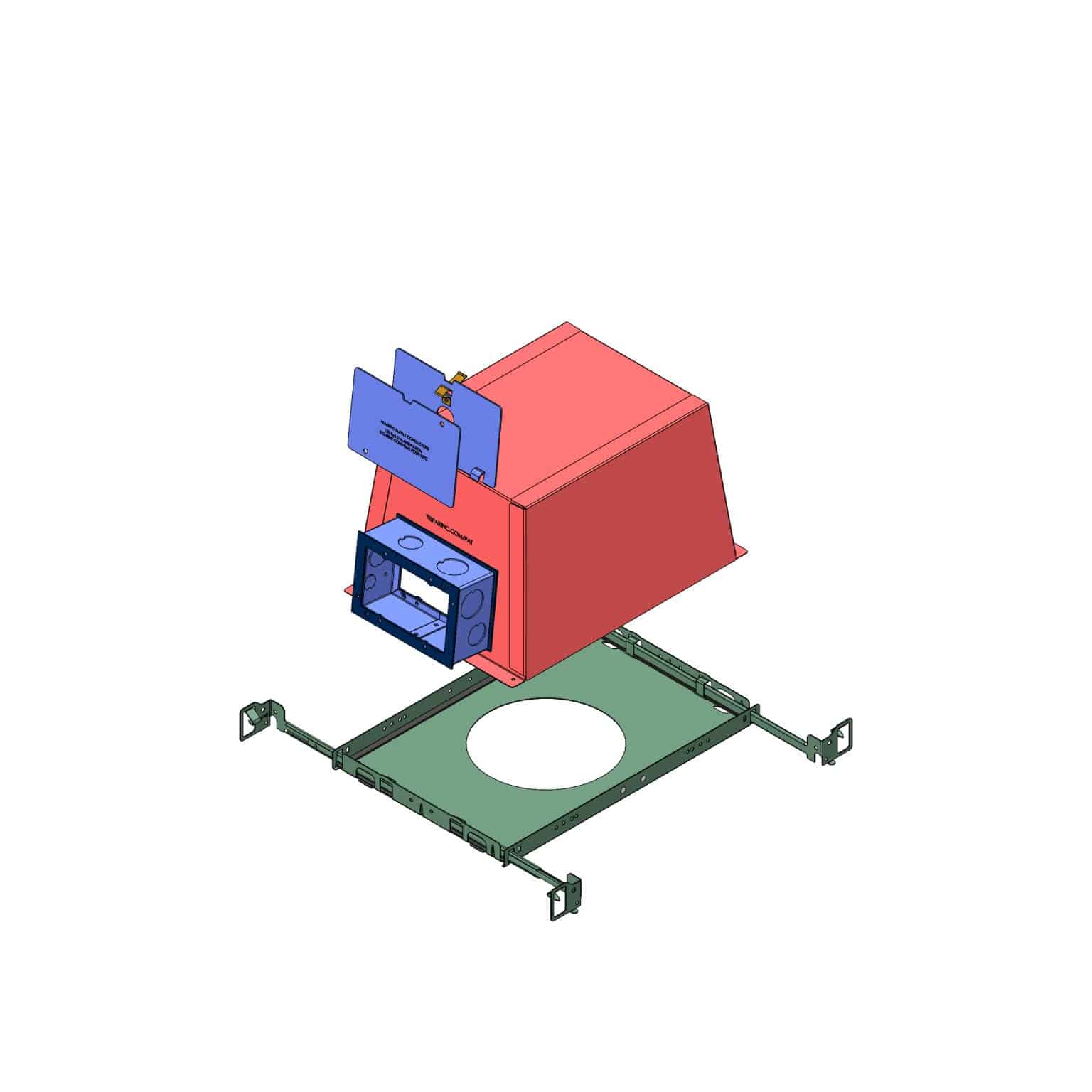

SKU: Assembly 1781/1785 Series
Trapezoid Assembly, available in Chicago Plenum & Ultra Airtight I.C. Standard 4-3/4″ or 6-3/4″ High, with variations for Vertical Adjustment.
SKU: Assembly 1483 Series
Large Assembly, Integral J-Box w/ Z-Bracket, Non I.C. 12-1/8″ x 15-9/16″. With variations for Volume Expansion, Vertical Adjustment and Large J-Box
SKU: Assembly 1486 Series
Large Assembly, available in Chicago Plenum & Ultra Airtight, I.C. 4 heights options 5-1/8″, 6-3/4″, 8-1/2″ and 11-1/4″ High. With variations for Large Junction Box and Vertical Adjustment (Available on all assembly options).
SKU: 1242-18B-AT
Airtight 3D cover, galv., snap-on. Internal junction box cover for use with Chicago Plenum & Ultra Airtight I.C. Boxes. Used to mount driver directly to cover. Height: 3 3/8″
SKU: 1242-25B-AT
Airtight 3D cover, galv., snap-on. Internal junction box cover for use with Chicago Plenum & Ultra Airtight IC Boxes. Used to mount driver directly to cover. Height: 3 3/8″
SKU: 1242-30
Cover, galv., Screw-On. External junction box cover for use with Chicago Plenum & Ultra Airtight IC Boxes.
SKU: 1242-30-10
Cover, galv., Screw-On. External junction box cover for use with Chicago Plenum & Small Ultra Shallow IC Boxes.
This cover with the new hole location fits only the 1485 Series.
SKU: 1242-31
Cover, galv., Snap-On. Internal junction box cover for use with Chicago Plenum & Ultra Airtight IC Boxes, with Ø.50″ hole.
SKU: 1242-36
Cover, galv., Snap-On. Internal junction box cover for use with Chicago Plenum & Ultra Airtight
Airtight IC Boxes, no hole.
SKU: 1742-31
Cover, galv., Snap-On. Internal junction box cover for use with Mini Chicago Plenum & Ultra Airtight Mini IC Box.
SKU: 1742-30
Cover, galv., Screw-On. External junction box cover for use with Mini Chicago Plenum & Mini Ultra Airtight IC Boxes.
SKU: 1205
Baffle, Ø2 5/16”, for MR16/GU10.
- 1205 black,
- 1205AL aluminum,
- 1205UNF steel,
- 1205ZN galv.
SKU: 1290
Baffle, Ø3 5/8”, 2 1/16” deep, for MR16/GU10, steel.
SKU: B15
Baffle, Ø4 23/32”.
- B15-BLK: black plastic,
- B15-WH: white plastic.
SKU: 1246
Bar hanger, straight, extra long (27 1/4″), steel.
SKU: 1287
Premium galvanized steel bar hangers. Adjustable to fit 16” and 24” spaced joists. Includes a set of male and female. For commercial & industrial usage.
SKU: 1287K
Set of 2 #1287 bar hanger sets packaged together in poly bag, not assembled.
SKU: 1785-11 / 1785BL-11
Chicago Plenum Trapezoid I.C. Box 4-3/4″ Tall, designed to allow nesting with one another – Galv. and Pre-painted Black
SKU: 1781-11 / 1781BL-11
Chicago Plenum Trapezoid I.C. Box 6-3/4″ Tall, designed to allow nesting with one another – Galv. and Pre-painted Black
SKU: 1785-11AT / 1785BL-11AT-1
Ultra Airtight Trapezoid I.C. Box (<0.2 cfm), with UL caulking, 4-3/4″ Tall, designed to allow nesting with one another – Galv. and Pre-painted Black
SKU: 1781-11AT / 1781BL-11AT
Ultra Airtight Trapezoid I.C. Box (<0.2 cfm), with UL caulking, 6-3/4″ Tall, designed to allow nesting with one another – Galv. and Pre-painted Black
SKU: 1254K
Butterfly bracket kit
- 2 x Butterfly Brackets (#1254)
- 2 x Carriage Bolts Wing Nuts (10-24UNC)
SKU: 1254/1287K
Butterfly Bracket/Bar Hanger Set Kit
- 2 x Butterfly Brackets (#1254)
- 2 x Bar Hanger sets (#1287)
- 2 x Carriage Bolts & Wing Nuts (10-24UNC)
SKU: 1254/1487K
Butterfly Bracket/Tripar L-Bars™ Kit
- 2 x Butterfly Brackets (#1254)
- 4 x L-Bars™ Hanger Commercial (#1487)
- 2 x Carriage Bolts & Wing Nuts (10-24UNC)
SKU: 1207-19WH
Canopy Pre-painted White, Ø4-1/2″ x 7/32″ H.
SKU: 1054/1287K
Caterpillar bracket and Bar Hanger Set Kit.
- 2 x Caterpillar Brackets (#1054)
- 2 x Bar Hanger sets (#1287)
- 2 x Carriage Bolts Wing Nuts (10-24UNC)
SKU: 1054K
Caterpillar bracket kit.
- 2 x Caterpillar Brackets (#1054)
- 2 x Carriage Bolts Wing Nuts (10-24UNC)
SKU: 0351WH-10
Check Ring pre-painted white, Ø2-7/8″ x 1/4″H-WH.
SKU: 1685-11 / 1685BL-11
Chicago Plenum I.C. box w/ gasketed junction box. Standard short – Galv. and Black Pre-painted.
SKU: 1681-11 / 1681BL-11
Chicago Plenum I.C. box w/ gasketed junction box – Standard, Galv and Black Pre-painted
SKU: 1481-11 / 1481BL-11
L:11-3/4, W:8-1/2, H:6-3/4
Chicago Plenum I.C. Boxes with Large J-Box 70, Standard – Galv. or Pre-painted Black, Compatible with 1286-XX Plaster Frame Series.
SKU: 1682-21 / 1682BL-21
Chicago Plenum I.C. box w/ gasketed junction box, large extra tall, Galv and Black Pre-painted
SKU: 1684-11 / 1684BL-11
Chicago Plenum I.C. box w/ gasketed junction box. Large short – Galv and Black Pre-painted
SKU: 1484-11 / 1484BL-11
Chicago Plenum I.C. Boxes with Large J-Box 70, Large – Galv. or Pre-painted Black, Compatible with 1483-1-XX Plaster Frame Series.
SKU: 1682-11 / 1682BL-11
Chicago Plenum I.C. box w/ gasketed junction box. large, tall – Galv and Black Pre-painted
SKU: 1482-11 / 1482BL-11
Chicago Plenum I.C. Boxes with Large J-Box 70, Large, Tall – Galv. or Pre-painted Black, Compatible with 1483-1-XX Plaster Frame Series.
SKU: 1684-12 / 1684BL-12
Chicago Plenum I.C. box w/ gasketed junction box. Large extra short – Galv and Black Pre-painted
SKU: 1485-11 / 1485BL-11
Chicago Plenum I.C. box w/ gasketed junction box. Small short – Galv and Pre-painted Black
SKU: 1775-11 / 1775BL-11
Mini I.C. box (<0.2 cfm) at only 2-1/4″ tall. With Slim junction box #1781-92-1 – Galv. and Pre-painted Black
SKU: 1286-00
Plaster frame, Chicago Plenum, with anti-vibration features, for 1681 and 1685 Airtight I.C. Box series and 1781 & 1785 Trapezoid Airtight IC Box, galv. NO HOLE.
Any hole size and shape upon request.
SKU: 1286-XX
Plaster Frame fits with 1681 & 1685 Series I.C. Box. Variety of hole openings available.
SKU: 1483-1-00
Plaster frame, Chicago Plenum for 1682 & 1684 series IC boxes, galv. NO HOLE.
Any hole size and shape upon request.
SKU: 1483-1-XX
Plaster Frame fits with 1682 & 1684 Series I.C. Box. Variety of hole openings available.
SKU: 1486-1-00
Plaster frame, Chicago Plenum, for 1682, 1684, 1482 & 1484, I.C. Box series, galv. NO HOLE. Any hole size and shape upon request.
SKU: Z1592
Clip, retaining, for plaster frames, Zinc plated spring steel
SKU: Z1652
Clip, Retaining, for Housing, Zinc plated spring steel
SKU: 1487K
Set of 4 Tripar L-Bars™ 1487 packaged together in poly bag,not assembled
SKU: 1242-XX
Range of over 50 cover varieties with differnet hole configurations. For 1232 & 1247 series Junction Boxes. Also to be used on 1241 & 1531 series plaster frames.
SKU: 1442-30
Cover, galv., Screw-On. External junction box cover for Large J-Box 70 for use with Chicago Plenum & Ultra Airtight IC Boxes 1481 Series.
SKU: 1442-31
Cover, galv., Snap-On. Internal junction box cover for Large J-Box 70 for use with Chicago Plenum & Ultra Airtight IC Boxes 1481 Series, with Ø.50″ hole.
SKU: 1542
Cover for #1532 Series, Large Junction Boxes 32. With an intentional slight curve which self-flattens upon installation to the J-Box.
SKU: 1214(AL)
Cover plate, for 1213 series Junction Boxes.
- 1214: galv.
- 1214AL: alum.
SKU: 1222(AL)
Cover plates, for 1221 & 1224 series Junction Boxes.
- 1222: galv.
- 1222AL: alum.
SKU: 0955-11
Cylinder, Domed, Ø4-1/2″ x 7-1/4″ H with side hole Ø13/32″.
SKU: 1410-XX
Small universal driver/junction box, W: 2-3/8″, H: 1-5/8″, L: variable from 8″ to 120″.
Stocked available length are: 8″; 12″; 16″; 20″.
SKU: 1420-XX
Large universal driver/junction box, W: 4″ , H: 2″, L: variable from 8″ to 120″.
Stocked available length are: 8″; 12″; 16″; 20″.
SKU: 1379/1380
Driver box and cover, 12-1/2″ x 3″ x 1-15/16″.
SKU: 1381/1382
Driver box and cover 9″ x 1-3/4″ x 1″.
SKU: 1383/1384
Driver box and cover, 11-1/2″ x 1-7/8″ x 1-3/4″.
SKU: 1385/1386
Driver box and cover, 9-1/2″ x 1-7/8″ x 1-1/2″.
SKU: 1387-10/1388
Driver box and cover, 4-1/2″ x 1-7/8″ x 1-1/2″.
SKU: 1389/1390
Driver box and cover, 6″ x 1-7/8″ x 1-1/2″.
SKU: 1422
High/Low voltage divider for large universal driver/junction box, W: 4″, H: 1-15/16″
SKU: 1412
High/Low voltage divider for small universal driver/junction box, W: 2-5/16″, H: 1-15/16″
SKU: 1232E
Junction Box extension.
Snaps onto 1232 & 1247 series Junction Boxes. Accepts all 1242 series covers.
Galv & Aluminum (#1232EAL)
SKU: 0700-9
Eyeball, Ø3 1/8”, for baffle, for MR16/GU10, steel
SKU: 0701-11
Eyeball, Ø3 9/16″, for baffle, for PAR16, steel.
SKU: 0701-9
Eyeball, Ø3 9/16”, for baffle, for MR16/GU10, steel
SKU: 1280-1
Bracket, bar hanger, flat, Galv.
SKU: 1233-1
I.C. box, knockdown, Part A, Flat, galv.
Holes vary as specified in spec. sheet.
Fits with #1233-2.
SKU: 1233-2
I.C. box, knockdown, Part B, flat, galv.
Fits with #1233-1, #1233-1-10 & #1233-1-11.
SKU: 1148S
Gimbal, Ø2 3/32″, for MR16/GU10 w/one side hole, steel.
