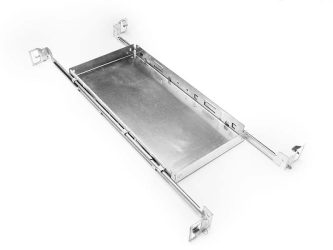

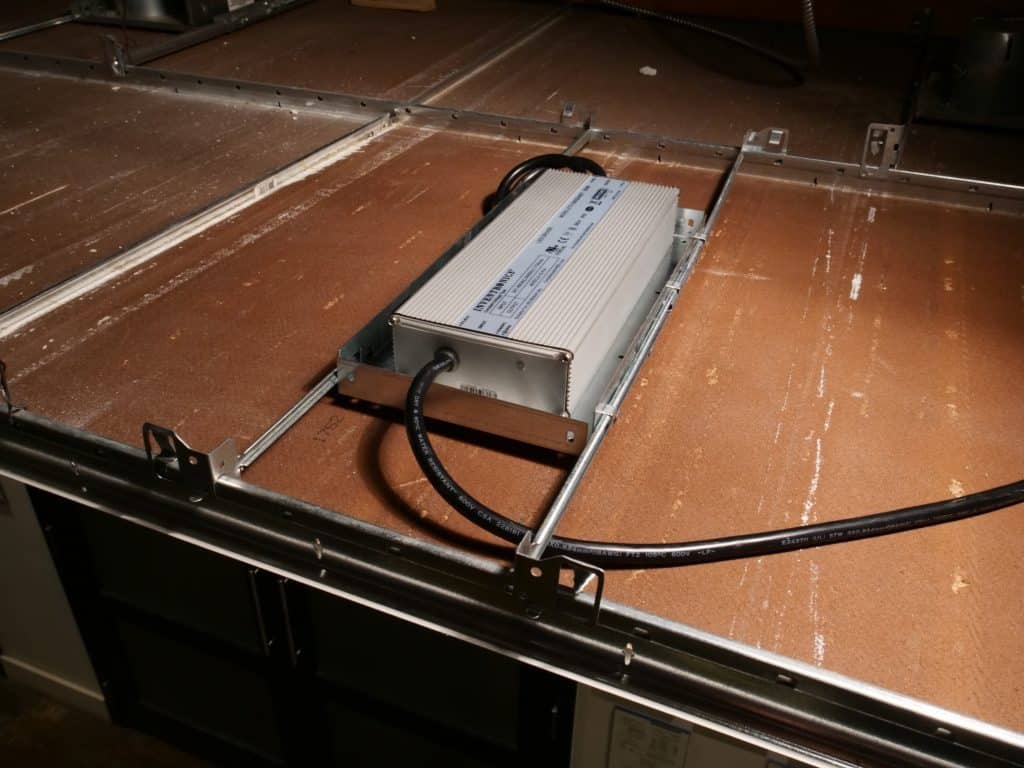

Need to anchor a driver, battery pack, or other device above a T-Bar drop ceiling? Use our custom T-Grid Plates with a pair of bar hangers.

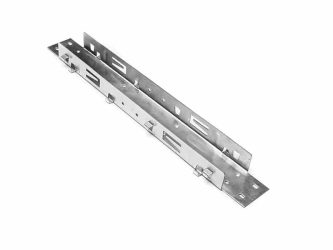

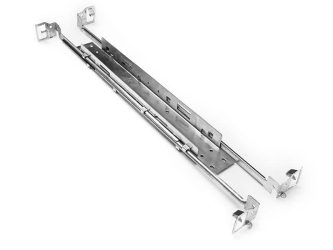

Integral bar hanger pockets on opposing sides accept our proven 1287 bar hangers; extendable from 14” to just over 24”, and offer a variety of mounting features, including notches for resting on T-Bar.

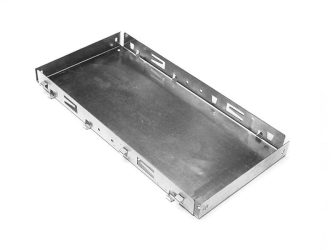

T-Grid plates ends may be flat or bent up 90⁰. Kept flat, the plate measures 14” long, allowing the device to overhang the plate if needed. Bent up, the plate measures 12” long, creating a pocket for the device thus limiting its length, but is an option to increase rigidity as plate width and device weight increase.
T-grid plate
Item | Description |
1405-X | T-Grid Plate, 12-1/8” long x custom width |
1405-X-FE | T-Grid Plate, flat ends, 13-7/8” long x custom width |
Note: Replace X with width required; e.g. 1405-2-FE for 2″ wide flat plate with flat ends.
Custom T-Grid Plates
For more information, please contact us at [email protected].
