New Product Bulletin – IC Boxes w/ Junction Box 70

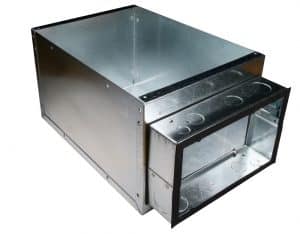

We are pleased to introduce a new line of IC Boxes, the same as our proven Single Ceiling IC Boxes, but containing a much larger junction box (J-Box), measuring 7-7/8” long x 4-7/8” tall x 1-7/8” deep; approx. 70 cu.in. hence the “70” in the description. This volume is more than double the 27 cu. in. of the J-Box used on our original Single Ceiling IC Boxes (measuring 4-7/8”” long x 3-1/8” tall x 1-7/8” deep).

The correspondingly larger internal J-Box cover (measuring 8“ long x 5-1/4” tall) can also accommodate larger drivers, and is available with whatever driver mounting and wire passage hole configuration is required. Available in both Reduced Airflow and Ultra Airtight IC Boxes, and made of the same .027” min thickness to comply with UL1598. Like the original J-Box used on our Airtight IC Box, J-Box 70 contains the same features allowing multiples to be secured together to double the volume; click here to learn more about the AT Extender Box , and order item # 1481-92-1.

The J-Boxes contain multiple knockout holes; 9/16”, 7/8” & 1-1/8”, and are made of galvanized steel, .05” min thickness to comply with UL1598.

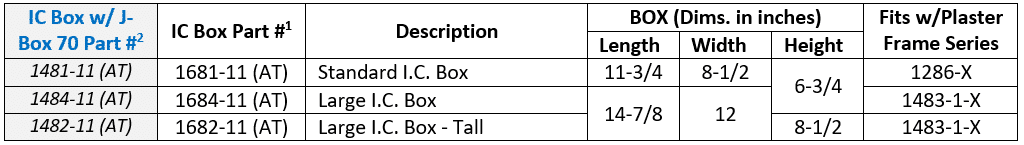

1 Original Single Ceiling IC Box, with smaller J-Box, please click here to read the related product bulletin. Requires Snap-on Inner J-Box Cover 1242-31 & Screw-on Outer J-Box Cover 1242-30.

2 Requires Snap-on Inner J-Box Cover 1442-31 & Screw-on Outer J-Box Cover 1442-30.

Also available in Pre-Painted black; please click here to read the related product bulletin. Add “BL” after 148X, e.g 1481BL-11.

Intertek I.C.Box air leakage report:

To obtain more information please contact our Sales Team at Sales@TriparInc.com.
