Product Bulletins

Junction Boxes & Twist 32™ & Twist 64™*

We are pleased to introduce two new larger Junction Boxes:

  • #1532 Series – 7-7/8” long x 2-3/8” tall x 1-5/8” deep, offering an inside volume of close to 32 cu.in.
  • #1432 Series – 7-7/8” long x 4” tall x 2” deep, with almost 64 cu.in.

By comparison our #1232 series Junction Boxes measure 4-3/4” long x 3” tall x 1-3/4” deep, with only 25 cu.in.

32 cu. in J-Boxes (L: 1532-10 & components, R: 1532T)

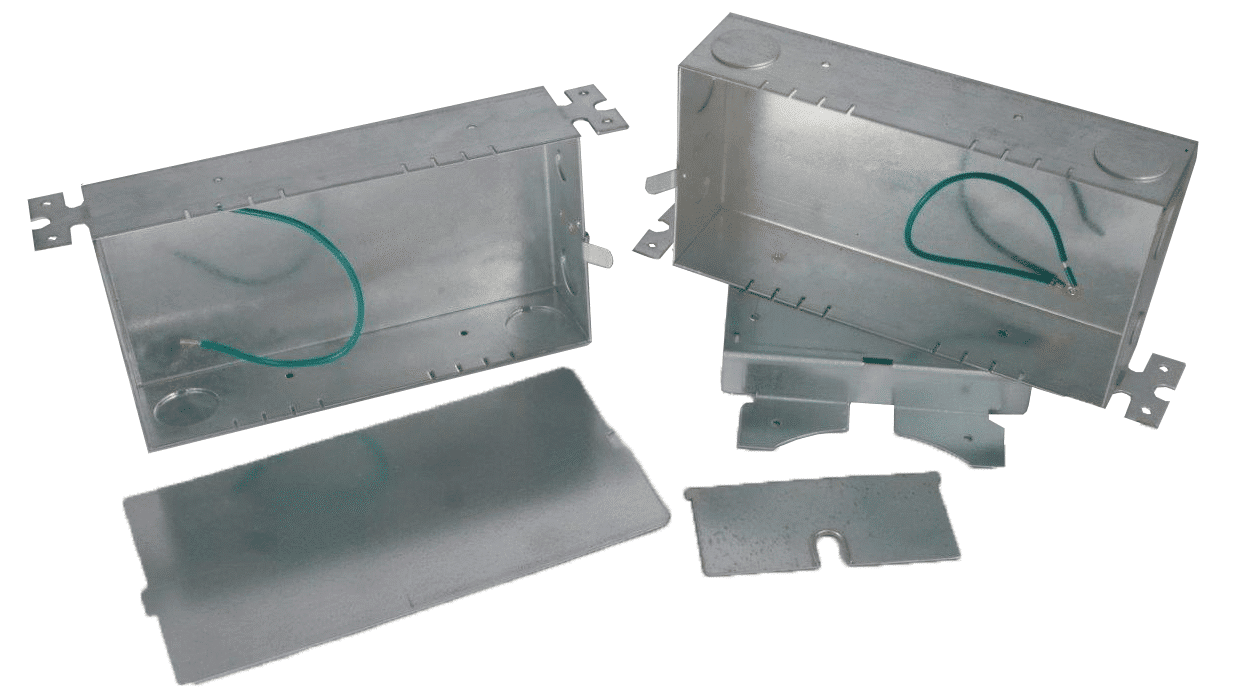

64 cu. in. J-Boxes (L: 1432-10 & components, R: 1432T)

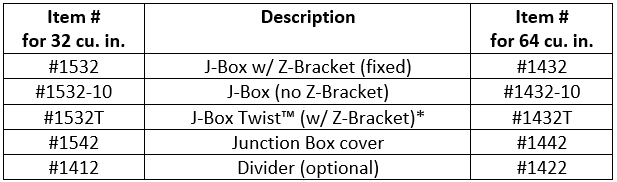

Both series come in three versions:

  • Z-Bracket: – Contains our proven Z-Bracket, to offset the J-Box and elevate it by 1”, ready to be riveted directly to most of our plaster frames – Part #1532 & #1432
  • Flat: Ready to be riveted directly onto the top side of most of our plaster frames, for reduced height. – Part #1532-10 & #1432-10
  • TWIST™: Comes with our proven Z-Bracket riveted to one end, and a stop means at the other, allowing the box to be rotated in either direction! – Part #1532T & #1432T.
    This facilitates:
    – line voltage installation by the electrician,
    – improved servicing access by rotating it toward the ceiling opening,

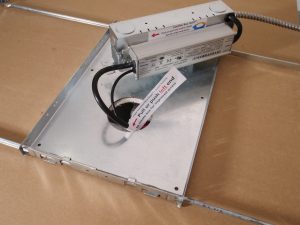

    – servicing in very small ceiling openings (2-3/4” or 70mm), where a hand can’t fit, use the #1532T Twist 32 with its 2-1/2” wide cover;  simply pull the luminaire cable or hook a bent coat hanger wire onto the T-wing and pull to rotate the Twist until the free end is over the hole, where the cover may be unlatched and lowered; see video below. Sure, beats busting the ceiling for servicing!

Twist 32 Junction Box

The correspondingly long J-Box covers 1542 & 1442 measure 8”, accommodating longer drivers, and are available with whatever driver mounting and wire passage hole configuration is required. Both J-Boxes contain multiple knockout holes; 9/16”, 7/8” & 1-1/8”. Made of galvanized steel, .05” min thickness to comply with UL1598.

Optional slide-in dividers (with integral strain relief slot to permit wire passage)  are available for line & low voltage separation, and can be placed in four positions; 1-1/2”, 2”, 2-1/2” & 3” from each end. How to decide which suits your requirements best? Click here to see a Feature Summary & Comparison.

Please click here to download the application instructions.

*Patent Pending.

To obtain more information please contact our Sales Team at Sales@TriparInc.com.
